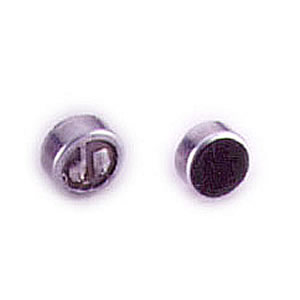

ELECTRET CONDENSER MICROPHONE UNITS (NEW)

SPECIFICATION:

• DIRECTIONALITY: Omni Directional
• SENSITIVITY [0db=1V/μbar.1kHz] VCC=4.5V, RL=1KΩ: A:-55± 3dB, B:-61± 3dB, C:-67± 3dB
• OUTPUT IMPEDANCE: Low
• FREQUENCY: 50Hz~ 13KHz
• RANGE OF OPERATING VOLTAGE: 1.5V to 10V Standard Voltage: 4.5V
• CURRENT DRAIN: <5mA Max.
• S/N RATIO: 40dB or more
• MAXIMUM INPUT SOUND PRESSURE: 120dB SPL

SPECIFICATION:

• DIRECTIONALITY: Omni Directional
• SENSITIVITY [0db=1V/μbar.1kHz] VCC=4.5V, RL=1KΩ: A:-56± 3d, B:-60± 3dB, C:-64± 3dB, D:-68± 3dB, E:-72± 3dB
• OUTPUT IMPEDANCE: Low
• FREQUENCY 50Hz~ 13KHz
• RANGE OF OPERATING VOLTAGE: 1.5V to 10V Standard Voltage: 4.5V
• CURRENT DRAIN: <0.5mA Max.
• S/N RATIO: 40dB or more
• MAXIMUM INPUT SOUND PRESSURE: 120dB SPL

SPECIFICATION:

• DIRECTIONALITY: Omni Directional
• SENSITIVITY [0db=1V/μbar.1kHz] VCC=4.5V, RL=1KΩ: A:-56± 3d, B:-60± 3dB, C:-64± 3dB, D:-68± 3dB, E:-72± 3dB
• OUTPUT IMPEDANCE: Low
• FREQUENCY 50Hz~ 13KHz
• RANGE OF OPERATING VOLTAGE: 1.5V to 10V Standard Voltage: 4.5V
• CURRENT DRAIN: <0.5mA Max.
• S/N RATIO: 40dB or more
• MAXIMUM INPUT SOUND PRESSURE: 120dB SPL

SPECIFICATION:

• DIRECTIONALITY: Omni Directional
• SENSITIVITY (0db=1V/μbar.1kHz] VCC=4.5V, RL=1KΩ)
  A:-56± 3dB, B:-60± 3dB, C:-64± 3dB, D:-68± 3dB, E:-72± 3dB
• OUTPUT IMPEDANCE: Low
• FREQUENCY: 50Hz~ 13KHz
• NGE OF OPERATING VOLTAGE: 1.5V to 10V
• Standard Voltage: 4.5V
• CURRENT DRAIN: <0.5mA Max.
• S/N RATIO: 40dB or more
• MAXIMUM INPUT SOUND PRESSURE: 120dB SPL

SPECIFICATION:

• DIRECTIONALITY: Uni Directional
• SENSITIVITY [0db=1V/μbar.1kHz] VCC=4.5V, RL=1KΩ: A:-60± 4dB, B:-64± 4dB
• OUTPUT IMPEDANCE: Low
• FREQUENCY: 50Hz~ 13KHz
• RANGE OF OPERATING VOLTAGE: 1.5V to 10V Standard Voltage: 4.5V
• CURRENT DRAIN: <0.5mA Max.
• S/N RATIO: 40dB or more
• MAXIMUM INPUT SOUND PRESSURE: 120dB SPL

SPECIFICATION:

• DIRECTIONALITY: Omni Directional
• SENSITIVITY [0db=1V/μbar.1kHz] VCC=4.5V, RL=1KΩ: A:-56± 3d, B:-60± 3dB, C:-64± 3dB, D:-68± 3dB, E:-72± 3dB
• OUTPUT IMPEDANCE: Low
• FREQUENCY 50Hz~ 13KHz
• RANGE OF OPERATING VOLTAGE: 1.5V to 10V Standard Voltage: 4.5V
• CURRENT DRAIN: <0.5mA Max.
• S/N RATIO: 40dB or more
• MAXIMUM INPUT SOUND PRESSURE: 120dB SPL

SPECIFICATION:

• DIRECTIONALITY: Omni Directional
• SENSITIVITY [0db=1V/μbar.1kHz] VCC=4.5V, RL=1KΩ: A:-56± 3d, B:-60± 3dB, C:-64± 3dB, D:-68± 3dB, E:-72± 3dB
• OUTPUT IMPEDANCE: Low
• RANGE OF OPERATING VOLTAGE: 1.5V to 10V Standard Voltage: 4.5V
• CURRENT DRAIN: 0.5mA Max.
• S/N RATIO: 40dB or more
• MAXIMUM INPUT SOUND PRESSURE: 120dB SPL

SPECIFICATION:

• DIRECTIONALITY: Omni Directional
• SENSITIVITY [0db=1V/μbar.1kHz] VCC=2V, RL=2.2KΩ: A:-38± 2dB, B:-40± 2dB, C:-42± 3dB, D:-44± 3dB, E:-46± 3dB
• OUTPUT IMPEDANCE: Less than 2.2KΩ
• RANGE OF OPERATING VOLTAGE: 1.5V to 10V Standard Voltage: 2V
• CURRENT DRAIN: 0.5mA Max.
• S/N RATIO: 58dB or more
• MAXIMUM INPUT SOUND PRESSURE: 120dB SPL
• RoHS Compliant.

SPECIFICATION:

• DIRECTIONALITY: Omni Directional
• SENSITIVITY [0db=1V/μbar.1kHz] VCC=2V, RL=2.2KΩ: A:-38± 2dB, B:-40± 2dB, C:-42± 3dB, D:-44± 3dB, E:-46± 3dB
• OUTPUT IMPEDANCE: Less than 2.2KΩ
• RANGE OF OPERATING VOLTAGE: 1.5V to 10V Standard Voltage: 2V
• CURRENT DRAIN: 0.5mA Max.
• S/N RATIO: 58dB or more
• MAXIMUM INPUT SOUND PRESSURE: 120dB SPL
• RoHS Compliant.

SPECIFICATION:

• DIRECTIONALITY: Omni Directional
• SENSITIVITY [0db=1V/μbar.1kHz] VCC=2V, RL=2.2KΩ: A:-38± 2dB, B:-40± 2dB, C:-42± 3dB, D:-44± 3dB, E:-46± 3dB
• OUTPUT IMPEDANCE: Less than 2.2KΩ
• RANGE OF OPERATING VOLTAGE: 1.5V to 10V Standard Voltage: 2V
• CURRENT DRAIN: 0.5mA Max.
• S/N RATIO: 58dB or more
• MAXIMUM INPUT SOUND PRESSURE: 120dB SPL
• RoHS Compliant.
